What Makes a Silicon Nitride Substrate Ideal for High‑Performance Electronics?

Silicon Nitride Substrate is a high‑performance ceramic substrate used widely in power electronics, automotive systems, aerospace, and other demanding environments due to its exceptional thermal, mechanical, and electrical properties. In this comprehensive guide we will explore its unique features, real applications, comparisons with alternatives, and common questions engineers and buyers ask.

This article explains what silicon nitride substrates are, why they are used in advanced electronic applications, detailed properties, real‑world uses, and addresses frequently asked questions (FAQ) to help engineers, product managers, and purchasers make informed decisions. It highlights credible data and industry insights and showcases how these substrates compare with other materials like AlN and alumina.

Table of Contents

• What is a Silicon Nitride Substrate?
• Why Is It Used in High‑Performance Electronics?
• Key Properties of Silicon Nitride Substrates
• Where Is It Used?
• How Does It Compare with Other Substrate Materials?
• FAQ: Silicon Nitride Substrate
• Conclusion

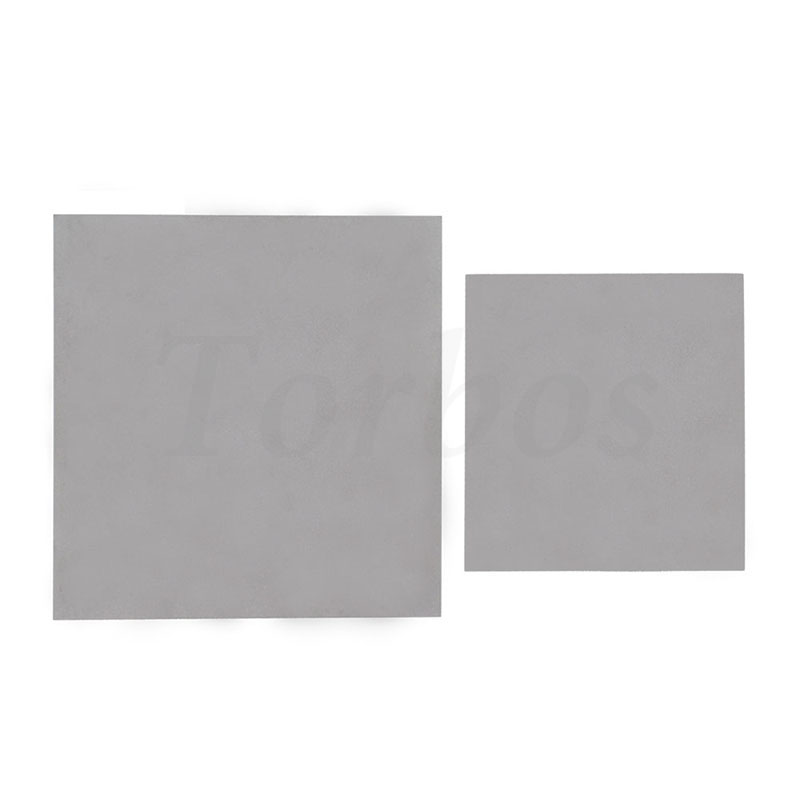

What Is a Silicon Nitride Substrate?

A silicon nitride substrate is a ceramic base made primarily from silicon and nitrogen combined as silicon nitride (Si₃N₄). It serves as a platform for electronic circuits or power modules in high‑temperature and high‑stress environments, where traditional substrates fail to deliver reliable performance.

Unlike standard PCB materials, silicon nitride substrates offer superior mechanical strength, excellent heat management, and electrical insulation, making them ideal for modern power devices and high‑frequency components.

Why Is It Used in High‑Performance Electronics?

Engineers choose silicon nitride substrates because they address critical challenges in power dense and high‑reliability electronics:

• Thermal management: Efficient heat dissipation reduces hotspots and prolongs device life.
• Mechanical robustness: High bending strength improves shock and vibration resistance.
• Electrical insulation: It is ideal for high‑voltage modules where leakage must be prevented.
• Thermal cycling stability: Maintains performance under rapid temperature changes, crucial in automotive and aerospace applications.

Key Properties of Silicon Nitride Substrates

Below is a summary of critical physical and functional properties that make silicon nitride substrates stand out:

Where Is Silicon Nitride Substrate Used?

Silicon nitride substrates have diverse applications across industries that demand reliability and performance:

• Power Electronics: Baseplates for IGBT, MOSFET and SiC modules in industrial drives and EV inverters.
• Automotive Systems: EV inverters, engine control electronics, and battery management systems.
• Aerospace: Electronics that must operate under thermal stress and extreme conditions.
• Renewable Energy: Solar inverters and wind turbine power electronics.
• Medical Devices: Biocompatible applications like implantable sensors.
• Optoelectronics and RF: High‑frequency component bases.

How Does It Compare with Other Substrate Materials?

Silicon nitride substrates compete with other ceramics such as alumina (Al₂O₃) and aluminum nitride (AlN). Here’s a quick comparison:

While AlN can offer even higher thermal conductivity, silicon nitride’s superior mechanical toughness and thermal shock resistance make it more reliable in many high‑stress applications.

FAQ: Silicon Nitride Substrate

What is a silicon nitride substrate?
A silicon nitride substrate is a ceramic base material composed mainly of silicon nitride (Si₃N₄) used as a platform for electronics and power modules due to its thermal, mechanical, and dielectric properties.

Why choose silicon nitride substrates for power electronics?
They provide excellent heat dissipation, high mechanical strength, and stable electrical insulation, making them ideal for high‑power and high‑reliability applications such as IGBT and SiC modules.

How does silicon nitride compare with aluminum nitride?
While AlN may offer slightly higher thermal conductivity, silicon nitride often provides better mechanical strength and thermal shock resistance, which enhances long‑term reliability.

Is silicon nitride substrate suitable for automotive applications?
Yes. Its thermal stability and low CTE make it suitable for EV inverters, engine electronics, and other automotive systems exposed to heat cycling.

Can silicon nitride substrates be customized?
Yes. Manufacturers can tailor size, thickness, and surface finishes for specific electronic packages and metallization needs.

Conclusion

Silicon nitride substrates represent a reliable, high‑performance ceramic material essential for advanced electronic and power systems. Their combination of thermal management, mechanical resilience, and electrical insulation makes them indispensable in applications ranging from automotive to aerospace. As the electronics industry continues to push power density and reliability requirements, silicon nitride’s role is set to expand further.

In the world of advanced ceramics, companies like Haining Torbo Ceramic Products Co., LTD. are delivering high‑quality silicon nitride substrates that enable next‑generation high‑power modules and electronics solutions.

If you have engineering requirements or need tailored solutions for your high‑performance electronic applications, contact us today to discuss how silicon nitride substrates can transform your designs.
